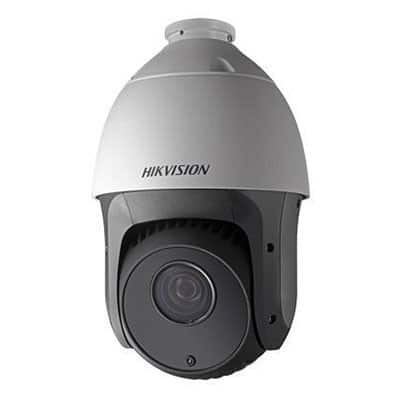

Camera HD-TVI Speed Dome hồng ngoại 2.0 Megapixel DS-2AE4223TI-D
13.530.000₫
Camera HD-TVI Speed Dome hồng ngoại 2.0 Megapixel DS-2AE4223TI-D
– Cảm biến hình ảnh: 1/3 inch Progressive Scan CMOS.
– Chuẩn nén hình ảnh: H.264 hoạt động tuyệt vời ở ánh sáng thấp.
– Độ phân giải: 2.0 Megapixel (1920 x 1080).
– Ống kính: 4 – 92mm.
– Zoom quang: 23x.
– Zoom số: 16x.
– Góc quan sát: 49-2.2° (Wide-Tele).
– Tầm quan sát hồng ngoại: 100 mét.
– Chức năng quan sát Ngày và Đêm (IR-CUT).
– Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Chức năng lọc nhiễu kỹ thuật số 3D DNR (Dynamic Noise Reduction).
– Chức năng chống ngược sáng Digital WDR (Wide Dynamic Range).
– Hỗ trợ ghi nhớ 256 vị trí định sẵn, tốc độ quay 0.3°-300°/s, nhận dạng chuyển động, gửi cảnh báo qua email, có khả năng chống sét và sốc điện, nhiệt độ môi trường hoạt động -30 ~ 65°C.
– Nguồn điện cung cấp: 12VDC
– Kích thước: Φ164.5 x 295mm.
– Trọng lượng: 2 kg.
Đặc tính kỹ thuật
Image Sensor | 1/3 inch Progressive Scan CMOS |
Min. Illumination | Color: 0.05Lux@ (F1.6,AGC ON); B/W: 0.005Lux@( F1.6,AGC ON), 0 Lux with IR |
Max. Image Resolution | 1920 x 1080 |
Focal Length | 4-92.0mm, 23x |
Digital Zoom | 16X |
Zoom Speed | Approx.3s (Optical Wide~Tele) |
Angle of View | 49-2.2 degree (Wide-Tele) |
Min. Working Distance | 10~1,000mm (Wide~Tele) |
Aperture Range | F1.4-F3.5 |
Focus Mode | Auto/ Semiautomatic/ Manual |
DWDR | Support |
S/N Ratio | ≥ 50dB |
Shutter Time | 1-1/10,000s |
AGC | Auto/ Manual |
White Balance | Auto/ Manual/ ATW/ Indoor/ Outdoor |
Day & Night | IR Cut Filter |
Privacy Mask | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
Enhancement | 3D DNR, BLC, EIS |
Pan and Tilt | |
Range | Pan: 360° endless; Tilt: -15°~90° (Auto Flip) |
Speed | Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s
Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s |
Number of Preset | 256 |
Patrol | Patrol 8 patrols, up to 32 presets per patrol |
Pattern | 4 patterns, with the total recording time not less than 10 minutes |
Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan |
Scheduled Task | Preset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan |
RS-485 communication
diagnosis |
Support |
Infrared | IR Distance |
IR Distance | Up to 100m |
IR Intensity | Automatically adjusted, depending on the zoom ratio |
Input/ Output | |
Turbo HD Output | 1 turbo HD720P/1080P output, 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
CVBS Output | 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
RS-485 Interface | Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
General | |
Menu Language | English |
Power | 12VDC, Max.18W |
Working Temperature /
Humidity |
-30 °C-65°C (-22°F-149°F) 90% or less |
Protection Level | IP66 standard
TVS 4,000V lightning protection, surge protection and voltage transient protection |
Mounting | Various mounting modes optional |
Dimensions | Φ164.5 x 295mm |
Weight | 2kg |
– Bảo hành: 24 tháng.
